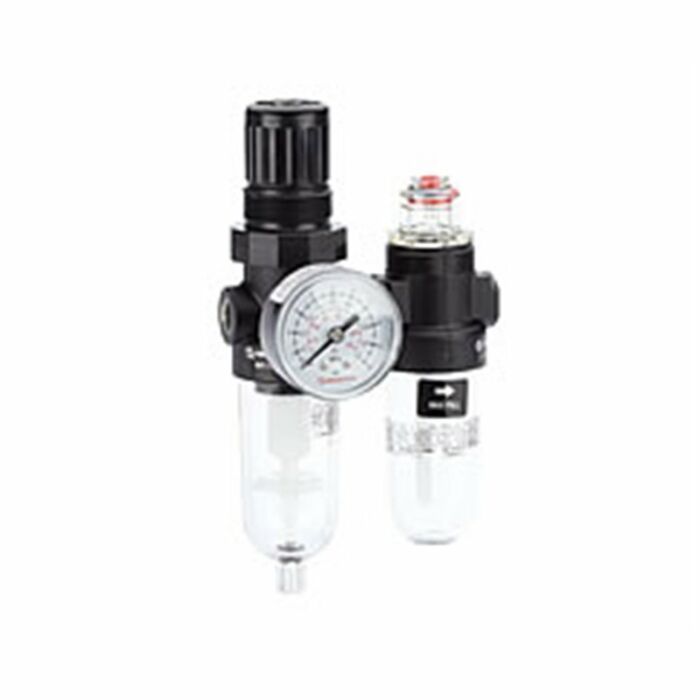

P1H Series combination unit (FRL), G1/4, manual drain, 40µm filter element P1H-200-M3QG

Name: P1H Series combination unit (FRL), G1/4, manual drain, 40µm filter element P1H-200-M3QG
SKU: P1H-200-M3QG
Availability: InStock

Eigenschaften

Marke:

Artikelnummer:

siehe Titel

Combinations of filter-regulators and lubricators can be ordered as pre-assembled units
Complete control of filtration, regulation and lubrication at a single point
Micro-fog versions for most general purpose pneumatic applications

Preis:

Auf Anfrage

Warum Global Trade?

Medium	Compressed Air
Operating Temperature	-20 … 50 °C
Port Size	G1/4
Drain Type	Manual
Gauge	No gauge
Gauge Port	Rc1/8
Filter Element	40 μm
Maximum Inlet Pressure	10 bar
Outlet Pressure Adjustment	0.3 … 7 bar
Lubricator Fog Type	Micro fog
Materials – Adjusting Knob	Acetal resin
Materials – Body	Acetal resin
Materials – Bonnet	Acetal
Materials – Elastomers	Nitrile rubber
Materials – Filter Element	Sintered polypropylene
Certification – REACH	Available on request
Certification – RoHS Compliant	Available on request
Certification – WEEE	NonWEEE
Classification – eClass 11	51050305
Classification – HS Code	84149000
Classification – HTS Code	8414909090
Classification – MIL Spec	Available on request
Classification – UNSPCS Code	40161505
Classification – US ECCN	EAR99
Dimensions – Height	73 mm
Dimensions – Length	166 mm
Dimensions – Width	90 mm
Range	P1H
Series	07 Series
