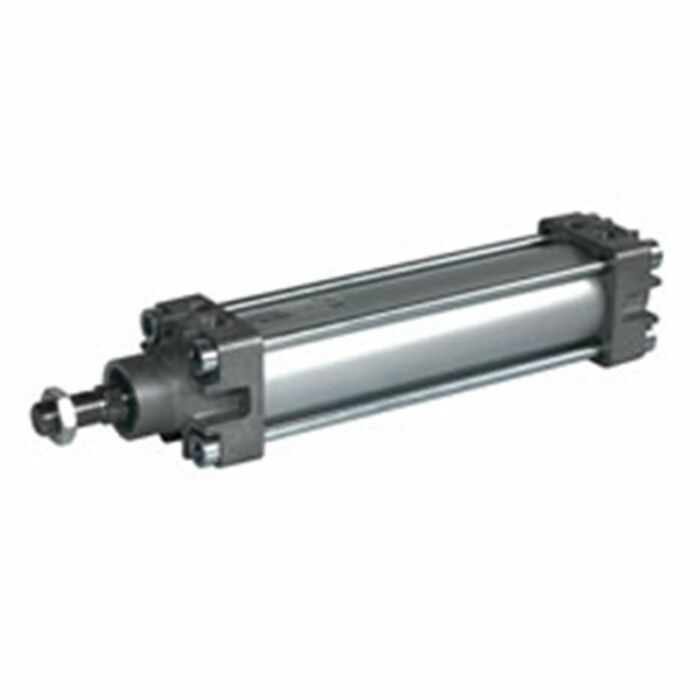

ISO tie rod double acting cylinder, 200mm diameter, 200mm stroke RA/8200/M/200

Name: ISO tie rod double acting cylinder, 200mm diameter, 200mm stroke RA/8200/M/200
SKU: 6e8ce14c23ea
Availability: InStock

Eigenschaften

Marke:

Artikelnummer:

siehe Titel

Preis:

Auf Anfrage

Warum Global Trade?

Medium	Compressed Air
Operating Temperature	-10 … 80 °C
Operating Pressure	1 … 16 bar
Standard	NFE 49-003-1
Port Size	G3/4
Cylinder diameter	200 mm
Stroke Length	200 mm
Operation	Double acting
Cushioning	Adjustable cushioning
Magnetic/Non-magnetic	Magnetic
Theoretical Force	18840 N
Materials – Barrel	Anodised aluminium
Materials – Elastomers	Nitrile rubber
Materials – Piston Head Seals	Polyurethane
Materials – Piston Rod	Stainless steel (Martensitic) (1.4021)
Certification – REACH	Available on request
Certification – RoHS Compliant	Available on request
Certification – WEEE	NonWEEE
Classification – eClass 11	51010101
Classification – HS Code	84123100
Classification – HTS Code	8412310000
Classification – MIL Spec	Unavailable
Classification – UNSPCS Code	27131701
Classification – US ECCN	EAR99
Dimensions – Height	224 mm
Dimensions – Length	547 mm
Dimensions – Width	224 mm
Weight	26.5 kg
Range	RA/8000/M
Series	ISO/VDMA Actuator
