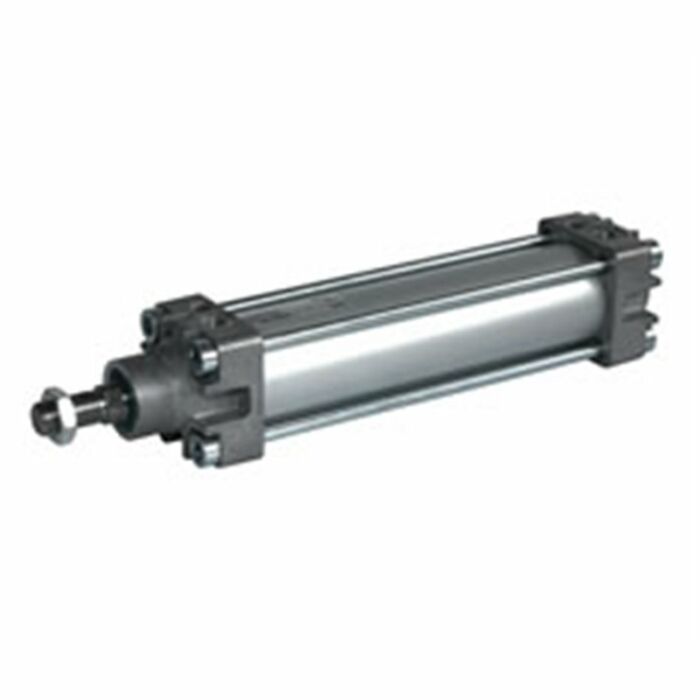

ISO tie rod double acting cylinder, 160mm diameter, 80mm stroke RA/8160/M/80
Eigenschaften
Marke:
Artikelnummer:
siehe Titel
Preis:
Auf Anfrage
Warum Global Trade?
- Große Auswahl an Produkten
- Lagerfähige & individuelle Bestellungen
- Dauerhaft günstige und transparente Preise
| Medium | Compressed Air |
|---|---|
| Operating Temperature | -10 … 80 °C |
| Operating Pressure | 1 … 16 bar |
| Standard | NFE 49-003-1 |
| Port Size | G3/4 |
| Cylinder diameter | 160 mm |
| Stroke Length | 80 mm |
| Operation | Double acting |
| Cushioning | Adjustable cushioning |
| Magnetic/Non-magnetic | Magnetic |
| Theoretical Force | 18840 N |
| Materials – Barrel | Anodised aluminium |
| Materials – Elastomers | Nitrile rubber |
| Materials – Piston Head Seals | Polyurethane |
| Materials – Piston Rod | Stainless steel (Martensitic) (1.4021) |
| Certification – REACH | Available on request |
| Certification – RoHS Compliant | Available on request |
| Certification – WEEE | NonWEEE |
| Classification – eClass 11 | 51010101 |
| Classification – HS Code | 84123100 |
| Classification – HTS Code | 8412310000 |
| Classification – MIL Spec | Unavailable |
| Classification – UNSPCS Code | 27131701 |
| Classification – US ECCN | EAR99 |
| Dimensions – Height | 183.5 mm |
| Dimensions – Length | 412 mm |
| Dimensions – Width | 183.5 mm |
| Weight | 16.66 kg |
| Range | RA/8000/M |
| Series | ISO/VDMA Actuator |
