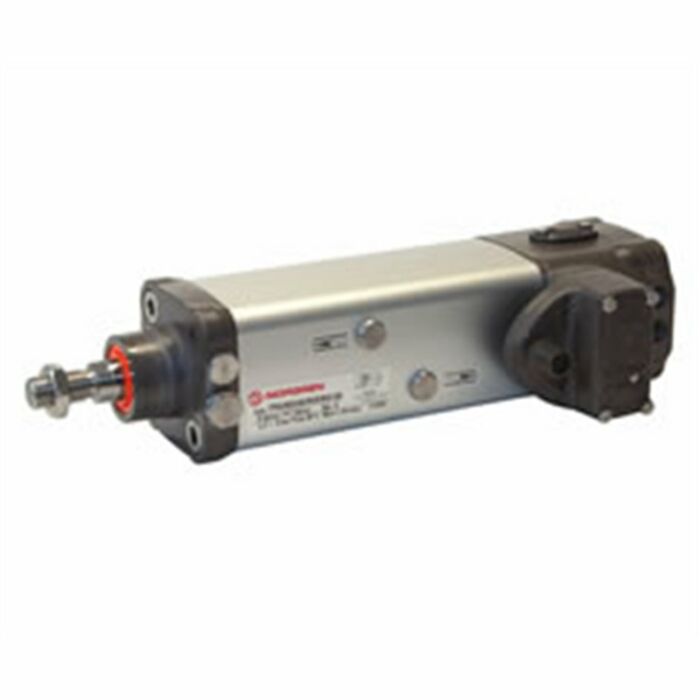

Integrated valve and actuator (IVAC), cleanline profile, 40mm diameter, 125mm stroke, 5/2 Sol/Sol PRA/882040/MIB/M4/125

Name: Integrated valve and actuator (IVAC), cleanline profile, 40mm diameter, 125mm stroke, 5/2 Sol/Sol PRA/882040/MIB/M4/125
SKU: 7be2ee367d9c
Availability: InStock

Eigenschaften

Marke:

Artikelnummer:

siehe Titel

Preis:

Auf Anfrage

Warum Global Trade?

Große Auswahl an Produkten
Lagerfähige & individuelle Bestellungen
Dauerhaft günstige und transparente Preise

Beschreibung

Medium	Compressed Air
Operating Temperature	-5 … 50 °C
Operating Pressure	2 … 8 bar
Standard	VDMA 24 562
Port Size	G1/8
Actuation	Sol/Sol
Cylinder diameter	40 mm
Stroke Length	125 mm
Cushioning	Adjustable cushioning
Magnetic/Non-magnetic	Magnetic
Theoretical Force	754 N
Materials – Barrel	Anodised aluminium
Materials – Piston Rod	Stainless steel
Materials – Seals	Polyurethane
Range	PRA/882000
Series	IVAC
