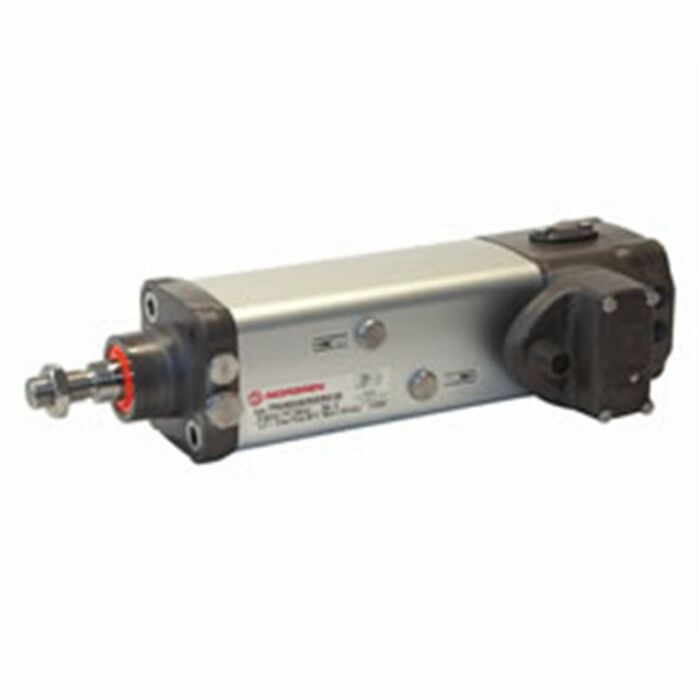

Integrated valve and actuator (IVAC), cleanline profile, 32mm diameter, 80mm stroke, 5/2 Sol/Sol PRA/882032/MIB/M4/80

Name: Integrated valve and actuator (IVAC), cleanline profile, 32mm diameter, 80mm stroke, 5/2 Sol/Sol PRA/882032/MIB/M4/80
SKU: b58447d1a0d0
Availability: InStock

Eigenschaften

Marke:

Artikelnummer:

siehe Titel

Preis:

Auf Anfrage

Warum Global Trade?

Große Auswahl an Produkten
Lagerfähige & individuelle Bestellungen
Dauerhaft günstige und transparente Preise

Beschreibung

Medium	Compressed Air
Operating Temperature	-5 … 50 °C
Operating Pressure	2 … 8 bar
Standard	VDMA 24 562
Port Size	G1/8
Actuation	Sol/Sol
Cylinder diameter	32 mm
Stroke Length	80 mm
Cushioning	Adjustable cushioning
Magnetic/Non-magnetic	Magnetic
Theoretical Force	754 N
Materials – Barrel	Anodised aluminium
Materials – Piston Rod	Stainless steel
Materials – Seals	Polyurethane
Certification – IP Rating	IP67
Certification – REACH	Available on request
Certification – RoHS Compliant	Available on request
Certification – WEEE	WEEE
Classification – eClass 11	51010101
Classification – HS Code	84123100
Classification – HTS Code	8412310000
Classification – MIL Spec	Unavailable
Classification – UNSPCS Code	27131701
Classification – US ECCN	EAR99
Dimensions – Height	94 mm
Dimensions – Length	222 mm
Dimensions – Width	68.5 mm
Weight	0.884 kg
Range	PRA/882000
Series	IVAC
