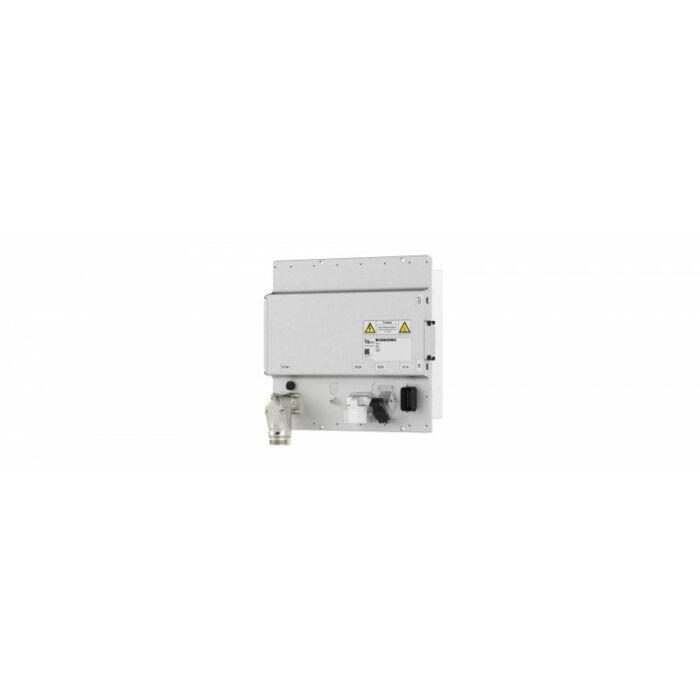

Electrify auxiliary units in vehicles with the T6 APD inverter system from KEB Automation. The T6 APD is designed for battery-electric vehicles or hybrid applications and meets all requirements placed on electronic components or systems – in terms of mechanical and thermal properties, environmental conditions, EMC, safety or service life.
The scalable and modular T6 APD system can be flexibly adapted to different vehicle requirements and enables the integration of up to six inverter modules, which are available in three power levels with nominal output currents of 16.5 A, 33 A and 60 A. The T6 APD reliably takes on the tasks of dynamic and energy-efficient speed and torque control.
The integrated mobile control system (MCU) offers the possibility of developing new automation solutions for the area of electric vehicles and mobile machines. With J1939 CAN and UDS APP, a communication gateway is available for the higher-level vehicle control. DC EMC filters installed as standard also ensure a high level of operational safety in interaction with other high-voltage components in the vehicles.
The T6 APD makes the electrification of auxiliary drives in vehicles noticeably easier. Thanks to an existing mobile control system, integrated EMC filters and the integration of up to six inverter modules, users with the T6 APD system have ideal conditions for quick and easy commissioning without additional effort. Advanced control algorithms for electric motors in vehicles ensure the highest level of efficiency.
- Power electronics for the control of electric auxiliary drives in commercial vehicles
- PMSM, ASM: Dynamic and energy-efficient speed and torque control
- Sensorless: Automatic detection of motor resistance, inductance and rotor position
- magnetless motors, synchronous reluctance motors, axial flux motors
- High-speed applications up to 2,000 Hz
KEB Automation offers you various application-specific software solutions for the electrified operation of auxiliary units in vehicles – for example for air compressors, servo or heat pumps, torque-speed control or generator applications.
- intelligent PLC (CODESYS)
- IEC 61131-3 environment, freely programmable
- CANopen and J1939 communication gateway for the exchange of process data, parameters and diagnostic messages
- UDS services
