SX602 series

SX602 series
SX602 series

Characteristics

Brand:

Siebert

Item number:

see title

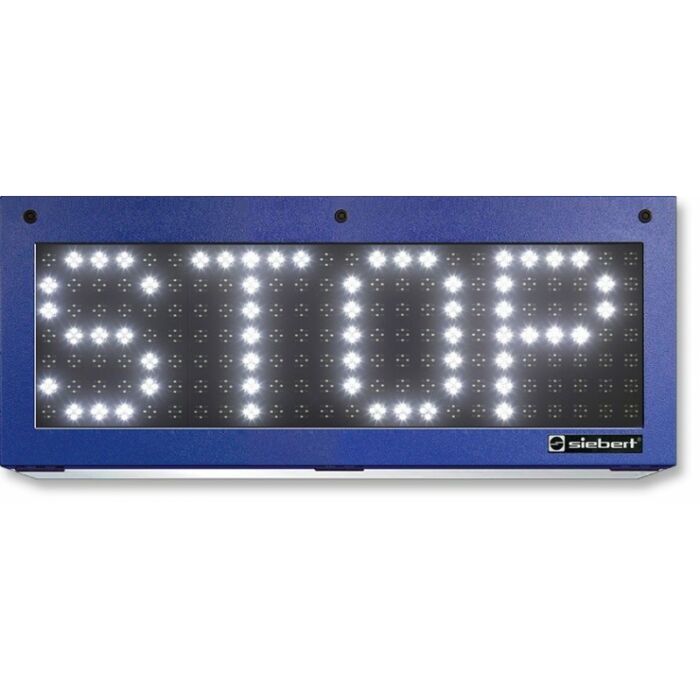

The SX602 series includes single-line large alphanumeric displays. With character heights of up to 250 mm, they are suitable for long reading distances. The LED matrix is ​​capable of scrolling text, so that longer texts can also be displayed by devices with a small number of characters.

Price:
Upon request
Why Global Trade?
  • Large selection of products
  • Stockable & individual orders
  • Permanently low and transparent prices

Readable on one or two sides

The large advertisements are offered with one-sided and two-sided advertisements. The versions with a two-sided display have an LED matrix on the front and back and display the same information on both sides.

Menu-guided parameterization

After opening the housing, the menu display is visible in the device. Operating modes, parameters and device functions can be defined in the menu without the main display having to be visible – a convenience feature, especially for large-volume devices or exposed installation locations.

Easy assembly and commissioning

The front frame is locked with quick-release fasteners and swings downwards when opened. Connections, assemblies and controls are now directly accessible without having to dismantle housing parts. On large devices, the front frame pivots upwards and is held in place by gas pressure springs.

Interfaces for industrial data communication

The large displays support the data interfaces for industrial communication: fieldbuses, network topologies, serial control, etc.

Function inputs

The devices have PLC-compatible function inputs. They enable device functions such as flashing, dark control and reducing the LED brightness (day/night switching) to be activated independently of the signals via the data interface.

Text storage

Fixed texts with an address can be stored in the internal text memory. When an address is received, the corresponding text appears in the display. This operating mode is advantageous if recurring texts are displayed. Variable information such as measured values, quantities or time and date can be displayed in the texts. A fixed text can also serve as a start text when switching on, e.g. B. “System trouble-free”.
