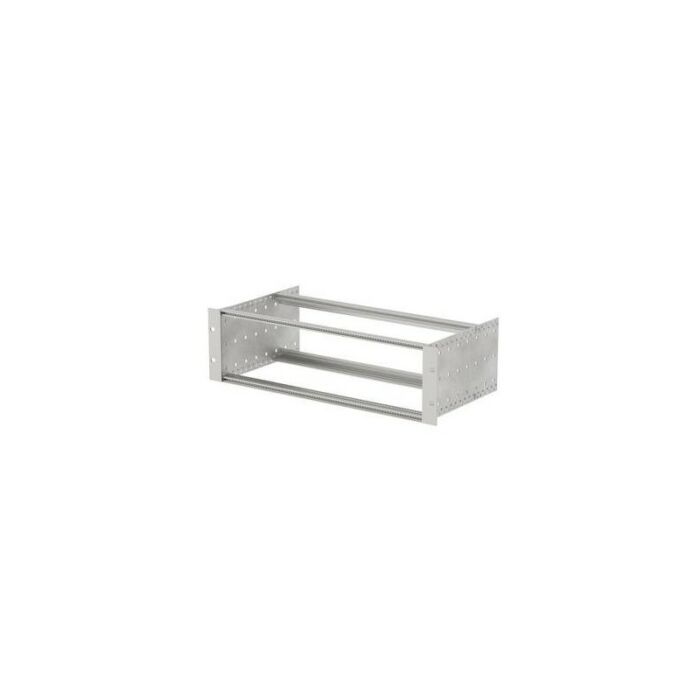

Subrack 3 U for connectors (.12) BGT/M 18340.12

Dimensions: 251 x 91 x 80.4 mm
Color: light gray
Protection class: IP65
NEMA: 3
Housing material: PA-GB, Neoprene CR seal; for details see Technical Information
Scope of delivery: lower part, upper part, 6 housing screws, 4 mounting screws
Note: The material may shrink by up to 0.8% when exposed to heat over a longer period of time (e.g. 75°C, 3 hours). Fluctuations in humidity can also cause dimensional changes of the same magnitude.
