Dimensions: 310.35 x 448.7 x 315.5 mm
HE: 6
TE: 84
Hue: —
Protection class: IP20
NEMA: 1
Housing material: Profiles: Al Mg Si 0.5, anodized. Bezels: die-cast aluminum. Front handles/flanges: die-cast aluminum. Side walls, cover and side panels: aluminum, passivated.

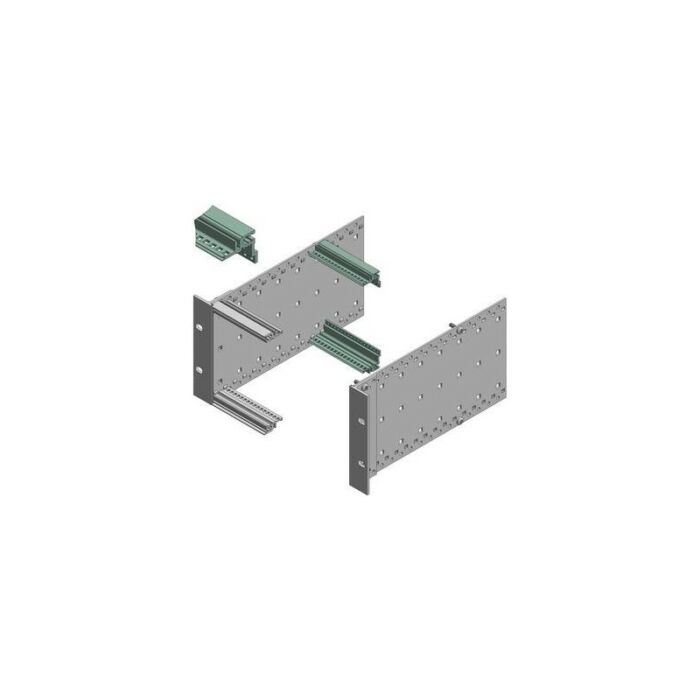

Scope of delivery: 1) 2 side walls (Al, white chromated)2) 4 front profiles, suitable for lifting handle according to IEEE 1101.10 (Al, visible surfaces powder-coated, anthracite gray, similar to RAL 7016)3) 4 panels (zinc die-cast, powder-coated, anthracite gray, similar to RAL 7016) 4) 2 cover plates with grounding lug; both with ventilation on the front (Al, white chromated, visible surfaces powder-coated, white aluminum, similar to RAL 9006)5) 2 side wall panels (Al, white chromated, visible surfaces powder-coated, white aluminum, similar to RAL 9006)6) 4 housing feet (PC, black with anti-slip protection)7 ) 2 filter strips8) 4 threaded strips (GS/M)9) 4 setscrews M2.5 (GSE/M)10) 1 set of fastening material BFS/INS 0100, BFS/INS 0200, BFS/INS 0300 (not shown)
Note: Installation conditions according to IEC 60297-3-101
