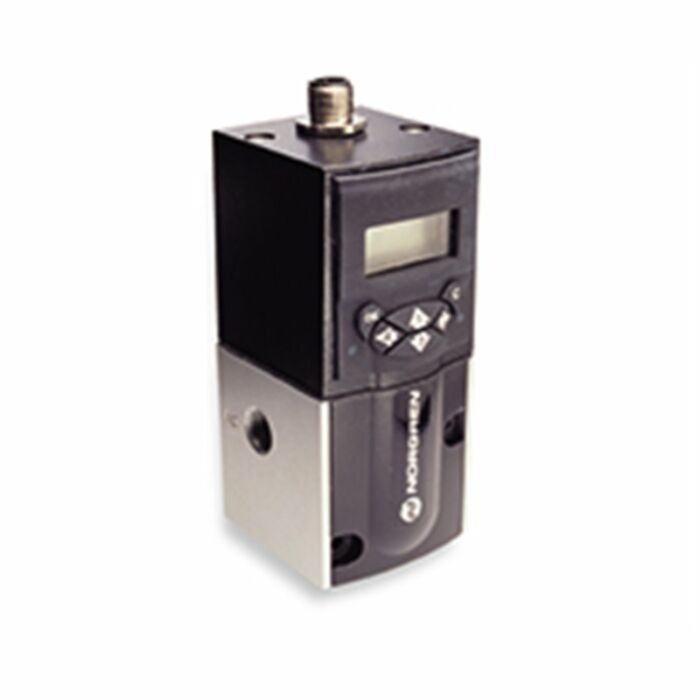

Programmable proportional pressure control valve VP5110BJ111H00

Programmable proportional pressure control valve VP5110BJ111H00
Programmable proportional pressure control valve VP5110BJ111H00

Characteristics

Brand:

Item number:

see title

  • Closed loop air pilot digital proportional control valve
  • Fully programmable with on-board diagnostics
  • Ability to set up offline
  • Multi-language menu option
  • Password protection option at first level functionality
  • Instant LED warning functions
  • Pressure output display; no gauge necessary
  • High-speed response
Price:
Upon request
Why Global Trade?
  • Large selection of products
  • Stockable & individual orders
  • Permanently low and transparent prices
Medium Compressed Air
Operating temperature 0 … 50 °C, 32 … 122 °F
Port Size G1/4
Operation 3/2
Control Signal 0..10 V
Fluid Temperature 32 … 122 °F
Materials – Body Zinc high-pressure diecast
Materials – Elastomers Nitrile rubber
Certification – IP Rating NEMA 4
Certification – REACH Available on request
Certification – RoHS Compliant Available on request
Certification – WEEE WEEE
Classification – eClass 11 51050403
Classification – HS Code 84812090
Classification – HTS Code 8481200050
Classification – MIL Spec Unavailable
Classification – UNSPCS Code 41112404
Classification – US ECCN EAR99
Dimensions – Height 50 mm
Dimensions – Length 135 mm
Dimensions – Width 55 mm
Weight 0.6 kg
Number of cycles 13500000
Range VP51
Series Watson Smith
