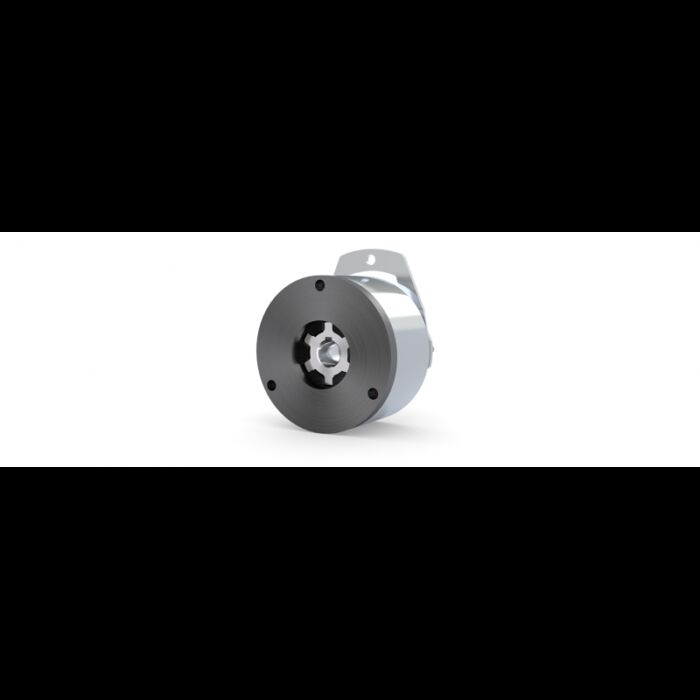

The COMBISTOP Type 08 is the mini series of closed-circuit-operated spring-applied brakes from KEB. The brake solution is characterized by a particularly compact design and is designed for small loads. Type 08 can be used as a service brake for dynamic applications and as a holding brake with emergency stop function for static applications.
The torque range of the mini brake is 0.3 – 2.5 Nm.
| Size |
Torque |
[Nm]
Performance [W] |
Max. Hub bore [mm] |
| 0B |
0.3 |
6 |
8 |
| 00 |
0.5 … 2 |
11 … 15 |
10 |
Standard voltage: 24V, 105V, 180V, 205V | Special voltage: on request
