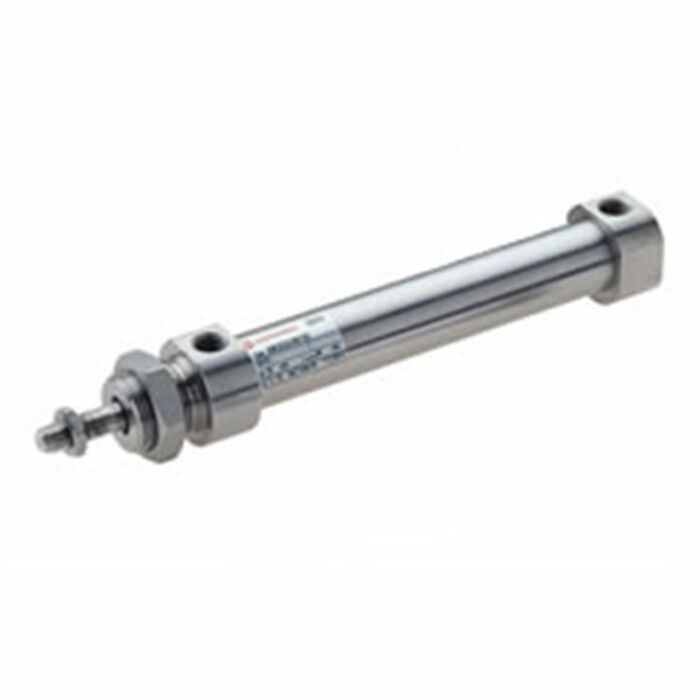

ISO roundline double acting stainless steel cylinder, 25mm diameter, 65mm stroke KM/8026/M/65

Name: ISO roundline double acting stainless steel cylinder, 25mm diameter, 65mm stroke KM/8026/M/65
SKU: 343eefec3c19
Availability: InStock

Characteristics

Brand:

Item number:

see title

High corrosion and acid resistance
Magnetic piston as standard
Conforms to ISO 6432
Suitable for applications in the food industry
Buffer or adjustable cushioning
Nose mounting nut and piston rod locknut as standard

Price:

Upon request

Why Global Trade?

Large selection of products
Stockable & individual orders
Permanently low and transparent prices

Description

Medium	Compressed Air
Operating temperature	-10 … 80 °C
Operating pressure	1 … 10 bar
ISO	6432
Port Size	G1/8
Cylinder diameter	25 mm
Stroke Length	65 mm
Operation	Double-acting
Cushioning	Adjustable cushioning
Magnetic/Non-magnetic	Magnetic
Theoretical Force	294 N
Materials – Barrel	X5 Cr Ni 18 10 (1.4301: AISI 304)
Materials – Piston Rod	material x10 cr ni s 18 9 (1.4305- aisi 303)
Materials – Piston	POM
Materials – Seals	Nitrile rubber
Classification – eClass 11	51010102
Classification – HS Code	84123100
Classification – US ECCN	EAR99
Range	KM/8000/M
