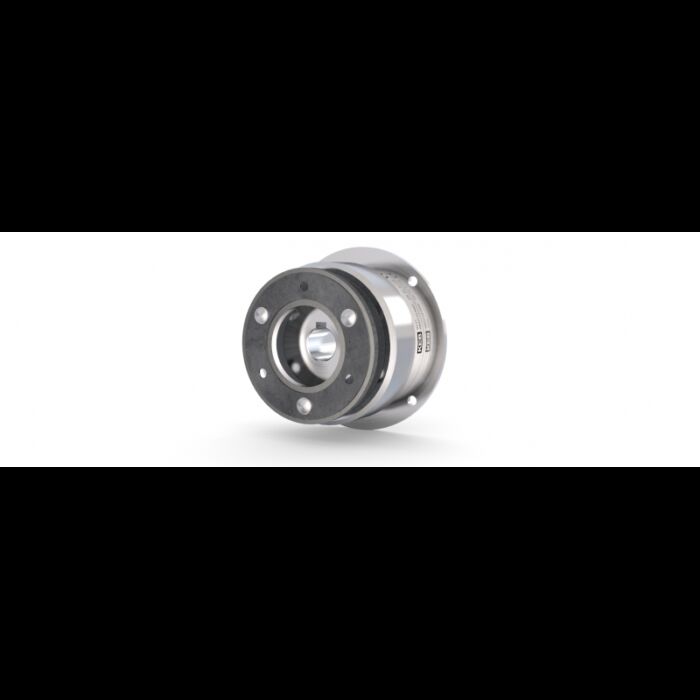

The COMBINORM C power-operated clutch engages when energized. It enables controlled switching on and off of functional parts in a particularly simple manner. The electromagnetic coupling is suitable for reliably positioning and transmitting torque of switchable shaft connections in clocked processes.
The torque range of the electromagnetic clutch is 0.5 – 500 Nm.
| |
flange mounted couplings shaft |
mounted couplings |
Max. Rotor bore [mm] |
Max. Hub bore [mm] |
| Size |
Torque [Nm] |
Performance [W] |
Torque [Nm] |
Performance [W] |
|
|
| 01 |
0,5 |
6 |
0,5 |
6 |
6 |
6 |
| 02 |
0,75 |
6 |
0,75 |
6 |
8 |
8 |
| 03 |
1,5 |
8 |
1,5 |
8 |
10 |
10 |
| 05 |
3 |
10 |
3 |
10 |
17 |
15 |
| 06 |
7 |
15 |
7 |
15 |
20 |
18 |
| 07 |
15 |
20 |
15 |
20 |
25 |
22 |
| 08 |
30 |
28 |
30 |
28 |
30 |
30 |
| 09 |
65 |
35 |
65 |
35 |
35 |
35 |
| 10 |
130 |
50 |
130 |
50 |
50 |
45 |
| 11 |
250 |
68 |
250 |
68 |
65 |
60 |
| 12 |
500 |
85 |
upon request |
80 |
70 |
Standard voltage: 24V | Special voltage: on request
