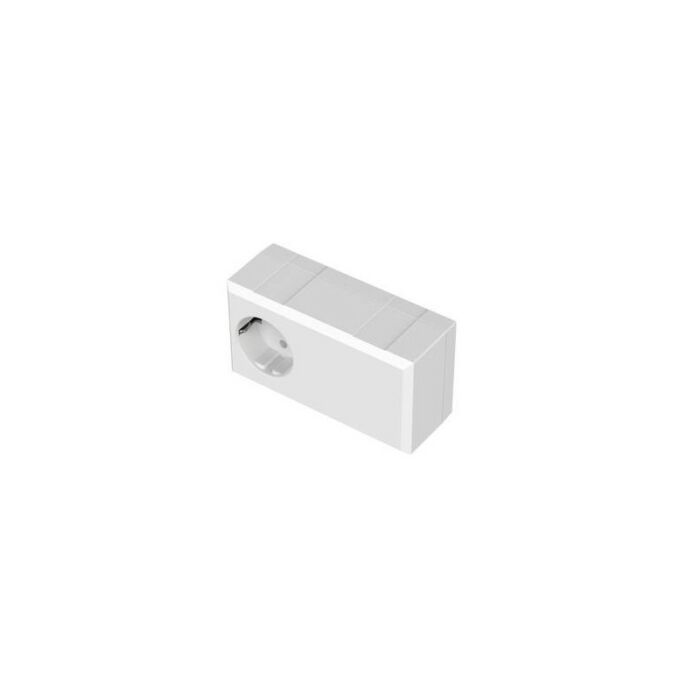

Connector housing ESO 1250 E / ESU 1200 – 9016

Dimensions: 132.5 x 269.24 x 218.24 mm
HE: 3
TE: 42
Map depth: 160
Protection class: IP20
NEMA: 1
Housing material: Profiles Al Mg: Si 0.5; For details see technical information
Scope of delivery: 1) 2 side panels with integrated flange (BSW 22300)2) 2 front profiles (PF 000..)3) 2 rear profiles (PRK 000.. .12)4) 8 screws M4 x 20 (BFS 0600)5) 2 threaded strips for front panel fastening (GS 000.. I)6) 2 threaded pins M2.5×5 (GSE-5)
Note: Bus board assembly without insulation strips. BGT with handle on request.
