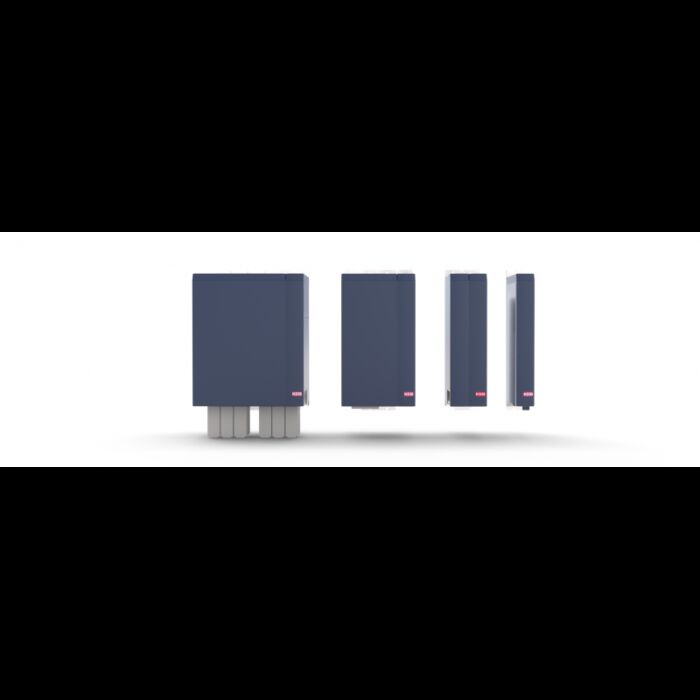

COMBIVERT H6 multi-axis drive system

COMBIVERT H6 multi-axis drive system
COMBIVERT H6 multi-axis drive system

Characteristics

Brand:

KEB Automation

Item number:

see title

  • DC link coupled drive system with space-saving design
  • Very high power density and large current range
  • Reduced wiring effort and time-saving assembly
  • Integrated motion controller
  • Energy efficient thanks to feed-in and regenerative capability (AIC)
  • Integrated security features
Price:
Upon request
Why Global Trade?
  • Large selection of products
  • Stockable & individual orders
  • Permanently low and transparent prices

The COMBIVERT H6 multi-axis system is a DC link coupled drive controller system for the operation of synchronous and asynchronous machines. Due to its large power range and the diverse combination options, the H6 system can be used flexibly in a wide variety of applications up to 315 A (axis modules I n = 2.6 A to 210 A and up to 2.2 times overload). Communication takes place via the EtherCAT system bus. The consistent concept reduces wiring effort and saves time during installation (for example through DC power and 24 V DC rail system).

Axis modules , single axis modules, double axis modules
Power range 0.75 kW … 110 kW 2 x 0.75 kW … 2 x 4 kW
Rated currents 2.6 A … 210 A 2 x 2.6 A … 2 x 9 A
Peak currents (60 s) … 2 x I n … 2 x I n
