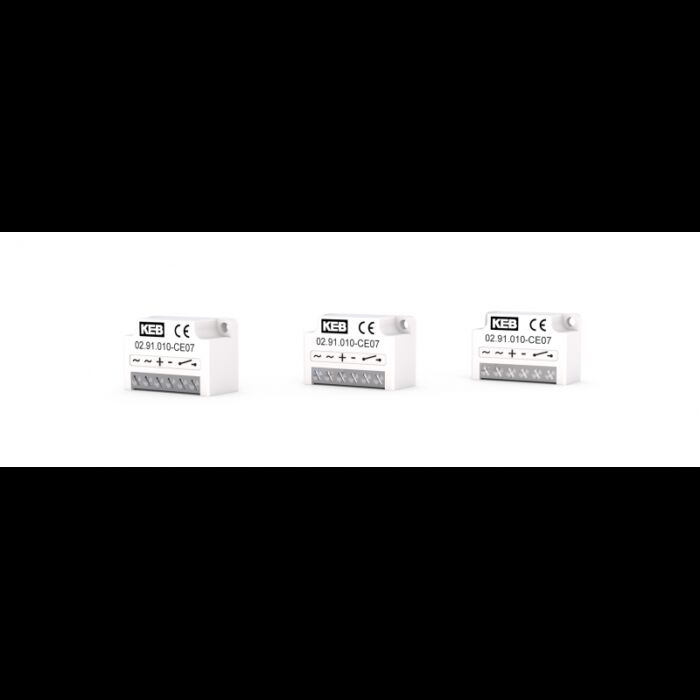

COMBITRON 91 are half-wave or bridge rectifiers for supplying electromagnets with a connection voltage of up to max. 720 V AC for DC or AC switching in accordance with the Low Voltage Directive 73/231/EEC. When switching electromagnetic clutches and brakes and other inductive direct current consumers, harmful electromagnetic interference can occur. Our half-wave rectifier with spark interference suppression limits interference to class A according to EN 55011.
| Connection voltage (U in ) |
Max. Connection voltage (U in max ) |
Max. Shutdown voltage |
Switching type |
Nominal voltage Magnet |
Rectifier type |
| 220/230V AC |
275V AC |
450V |
Disposable |
105V DC |
0291010-CE07 |
| |
|
|
Bridge |
205 V DC |
0291020-CE07 |
| |
|
|
Single-way with interference suppression |
105 V DC |
0291010-CEMV |
| 380/400V AC |
500V AC |
900V |
Disposable |
180V DC |
0491010-CE07 |
| |
|
|
Bridge |
380 V DC |
0491020-CE07 |
| 380/400V AC |
600V AC |
1000 B |
Disposable |
upon request |
0591010-CE09 |
| 600/690V AC |
720V AC |
1600 B.C |
Disposable |
upon request |
0691010-CE09 |
