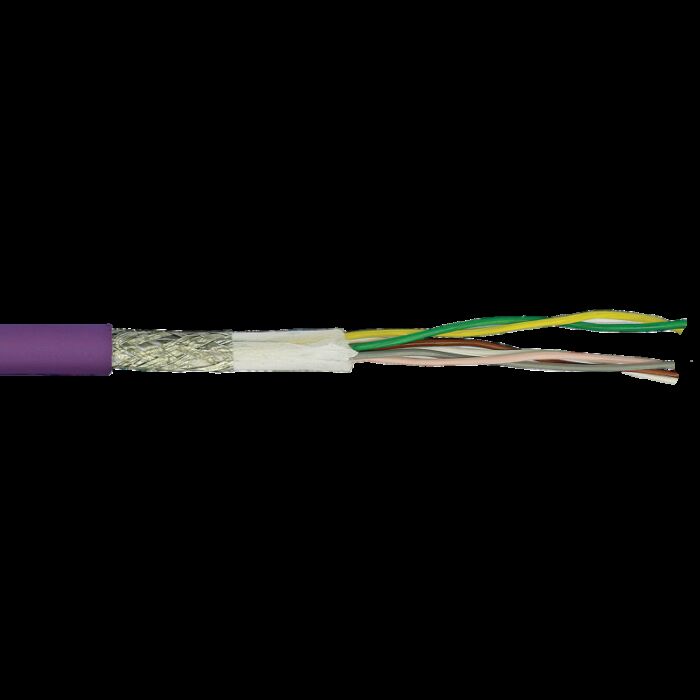

BC450 Interbus flexible application

Name: BC450 Interbus flexible application
Brand: Brevetti Stendalto
SKU: da1b5a6279d4
Availability: InStock

Characteristics

Brand:

Brevetti Stendalto

Item number:

see title

Price:

Upon request

Why Global Trade?

	Characteristic impedance 100 Ohms +/- 15 Ohms
	Electrical resistance 96 Ohms/km
	Insulation resistance > 5000 Mohm/km
	damping 0.256 MHz=1.5 dB/100 m 0.722 MHz=2.4 dB/100 m 1 MHz=2.7 dB/100 m 4 MHz=5.2 dB/100 m 10 MHz=8.4 dB/100 m 16 MHz=11.2 dB/100 m 20 MHz=11.9 dB/100 m
	Crosstalk 0.722MHz=61db/100m 1MHz=59db/100m 2MHz=55db/100m 4MHz=50db/100m 8MHz=46db/100m 10MHz=44db/100m 16MHz=41db/100m 20MHz=40db/100m;
	Flame retardancy IEC60332.1.1
	UL/CSA certified UL/CSA DESINA NEK606
